iP 16 Pro Max 512GB

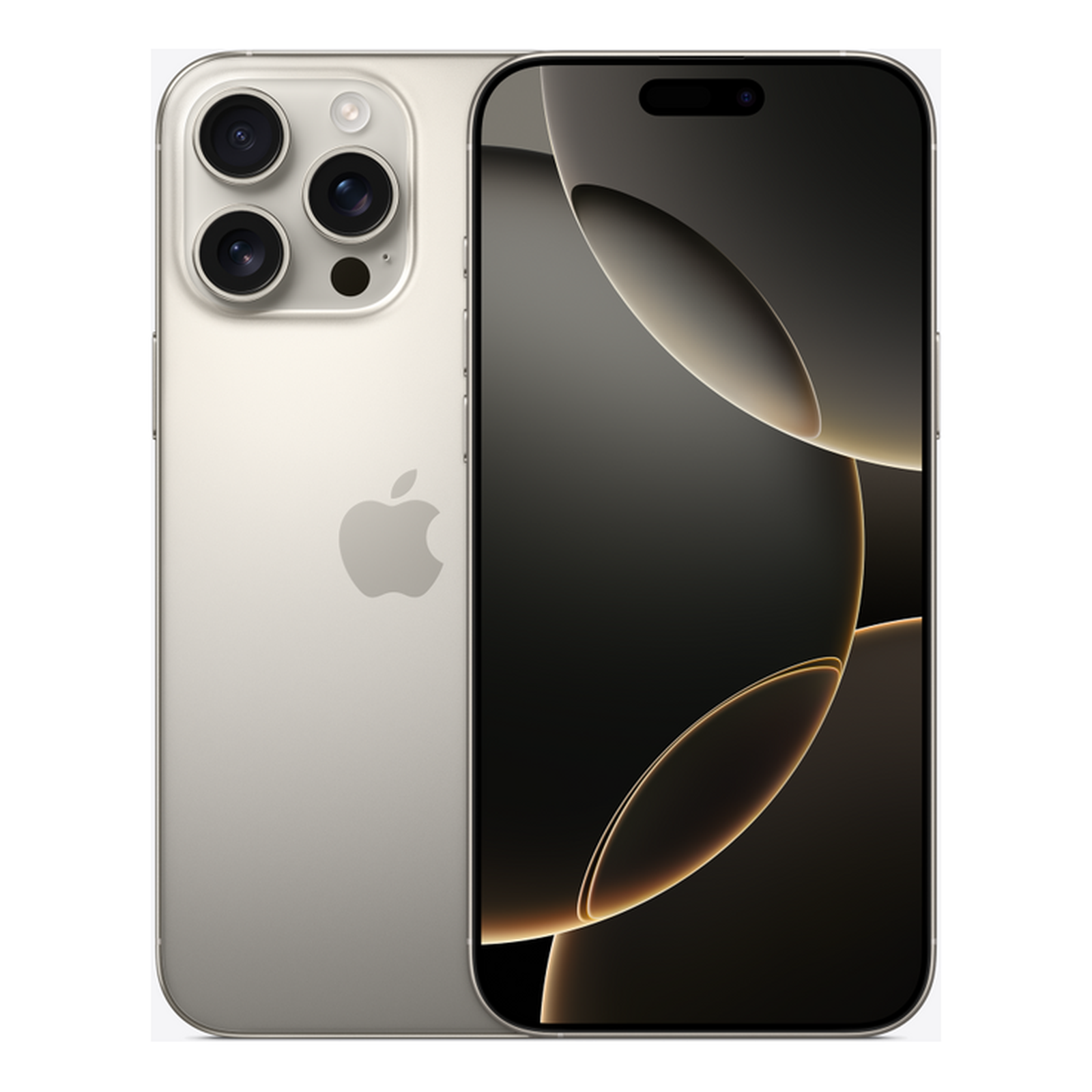

Apple iPhone 16 Pro Max · 512GB

Display

Type	Super Retina XDR OLED, all-screen, Dynamic Island, Always-On, ProMotion adaptive up to 120Hz, HDR, True Tone, wide colour (P3), 2,000,000:1 contrast, 1000 nits max typical, 1600 nits peak HDR, 2000 nits peak outdoor, 1 nit minimum
Size	6.9 inches (17.4 cm diagonal)
Resolution	2868 x 1320 pixels at 460 ppi, 19.5:9 ratio
Protection	Ceramic Shield glass, fingerprint-resistant oleophobic coating

Performance

OS	iOS 18, upgradable to iOS 26.x
Chipset	Apple A18 Pro (3 nm)
CPU	Hexa-core (2 performance + 4 efficiency cores)
GPU	Apple GPU (6-core graphics, hardware ray tracing) 16-core Neural Engine

Memory

Card slot	No
Storage	512GB

Main camera

Setup	Triple
Modules	48 MP Fusion, 24mm, f/1.78, second-generation sensor-shift OIS, 100% Focus Pixels, 24MP and 48MP super-high-resolution output 48 MP Ultra Wide, 13mm, f/2.2, 120° field of view, hybrid Focus Pixels, 48MP super-high-resolution output 12 MP 5x Telephoto, 120mm, f/2.8, 20° field of view, 100% Focus Pixels, seven-element lens, 3D sensor-shift OIS and autofocus, tetraprism design 12 MP 2x Telephoto, 48mm, f/1.78, is a crop of the quad-pixel Fusion sensor, not a separate module LiDAR Scanner (depth, used for Night mode portraits and autofocus)
Features	Camera Control button sapphire crystal lens cover Adaptive True Tone flash Photonic Engine Deep Fusion Smart HDR 5 Night mode Night mode portraits via LiDAR Portrait Lighting with six effects latest-generation Photographic Styles spatial photos 48MP macro photography Apple ProRAW Panorama up to 63MP 5x optical zoom in and 2x optical zoom out (10x optical range) digital zoom up to 25x
Video	4K Dolby Vision@24/25/30/60/100/120fps (100 and 120fps on the Fusion camera only) 1080p Dolby Vision@25/30/60/120fps 720p Dolby Vision@30fps Cinematic mode up to 4K Dolby Vision@30fps Action mode up to 2.8K Dolby Vision@60fps spatial video 1080p@30fps ProRes up to 4K@120fps with external recording Log recording ACES slo-mo 1080p up to 240fps and 4K Dolby Vision slo-mo up to 120fps macro video QuickTake up to 4K Dolby Vision@60fps four studio-quality mics Spatial Audio Wind Noise Reduction Audio Mix

Front camera

Setup	Single
Modules	12 MP TrueDepth, f/1.9, autofocus with Focus Pixels TrueDepth IR sensor array for Face ID
Features	Retina Flash Photonic Engine Deep Fusion Smart HDR 5 Portrait Lighting with six effects Night mode Photographic Styles Apple ProRAW Animoji and Memoji
Video	4K Dolby Vision@24/25/30/60fps 1080p Dolby Vision@25/30/60fps Cinematic mode up to 4K Dolby Vision@30fps ProRes slo-mo 1080p@120fps cinematic video stabilization

Battery

Type	Li-Ion 4685 mAh (Apple publishes runtime, not capacity: video playback up to 33 h, streamed video up to 29 h, audio up to 105 h)
Charging	Fast charge up to 50% in around 30 min with a 20W or higher adapter over USB-C, or a 30W or higher adapter with a MagSafe charger MagSafe wireless up to 25W with a 30W or higher adapter 15W Qi2 wireless 7.5W Qi wireless

Body

Dimensions	163.0 x 77.6 x 8.25 mm (6.42 x 3.06 x 0.32 in)
Weight	227 g (8.02 oz)
Build	Titanium frame (grade 5), Ceramic Shield front, textured matte glass back
SIM	Nano-SIM + eSIM + eSIM (International, including Korea) eSIM + eSIM only (USA A3084) Nano-SIM + Nano-SIM (China A3297)
Durability	IP68 dust tight and water resistant (maximum depth 6 m up to 30 min, IEC 60529)

Connectivity

Wi-Fi	Wi-Fi 7 (802.11be) with 2x2 MIMO, hotspot
Bluetooth	5.3, A2DP, LE
Positioning	Precision dual-frequency GPS (GPS, GLONASS, Galileo, QZSS, BeiDou, NavIC), digital compass, iBeacon microlocation
NFC	Yes, with reader mode Express Cards with power reserve
Radio	No
USB	USB Type-C connector, USB 3 up to 10Gb/s, DisplayPort

Sound

Loudspeaker	Yes, with built-in stereo speakers
Jack 3 5Mm	No

Features

Sensors	Face ID LiDAR Scanner barometer high dynamic range gyro high-g accelerometer proximity sensor dual ambient light sensors magnetometer
Other	Second-generation Ultra Wideband chip Thread networking Action button Camera Control capacitive button Emergency SOS via satellite Roadside Assistance via satellite Crash Detection MagSafe magnet array Apple Intelligence supported

Network

Technology	GSM / HSPA / LTE / 5G
Bands 2G	GSM/EDGE 850 / 900 / 1800 / 1900 MHz
Bands 3G	UMTS/HSPA+/DC-HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 MHz
Bands 4G	FDD-LTE bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 66 TDD-LTE bands 34, 38, 39, 40, 41, 42, 48, 53 (A3293 / A3296 band set as published by Apple Korea)
Bands 5G	FDD-5G NR bands n1, n2, n3, n5, n7, n8, n12, n20, n25, n26, n28, n30, n66, n70, n75, n76 TDD-5G NR bands n38, n40, n41, n48, n53, n77, n78, n79 (A3293 / A3296). Sub-6 GHz only mmWave is US-model only.
Speed	5G (sub-6 GHz) with 4x4 MIMO Gigabit LTE with 4x4 MIMO HSPA

Korean colours

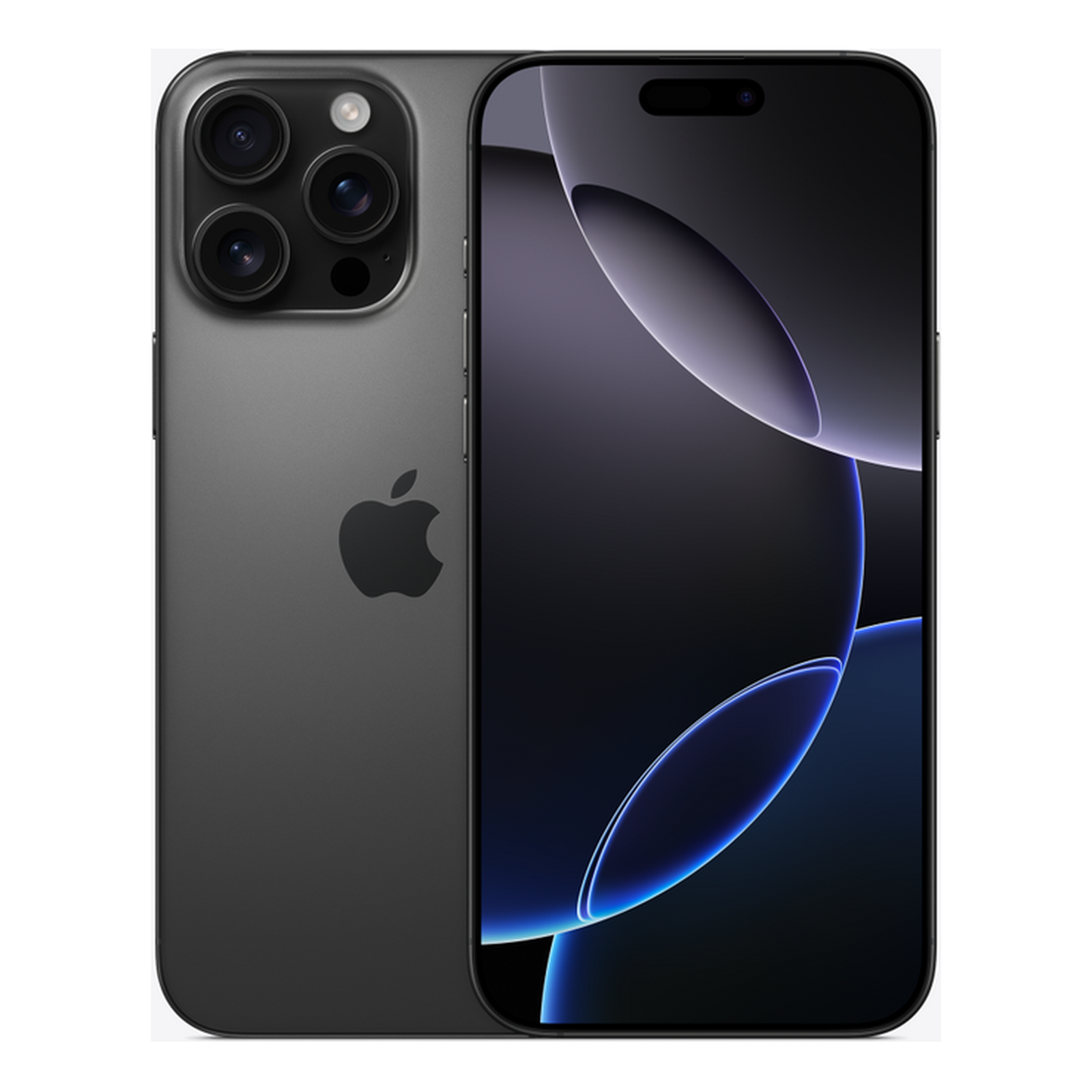

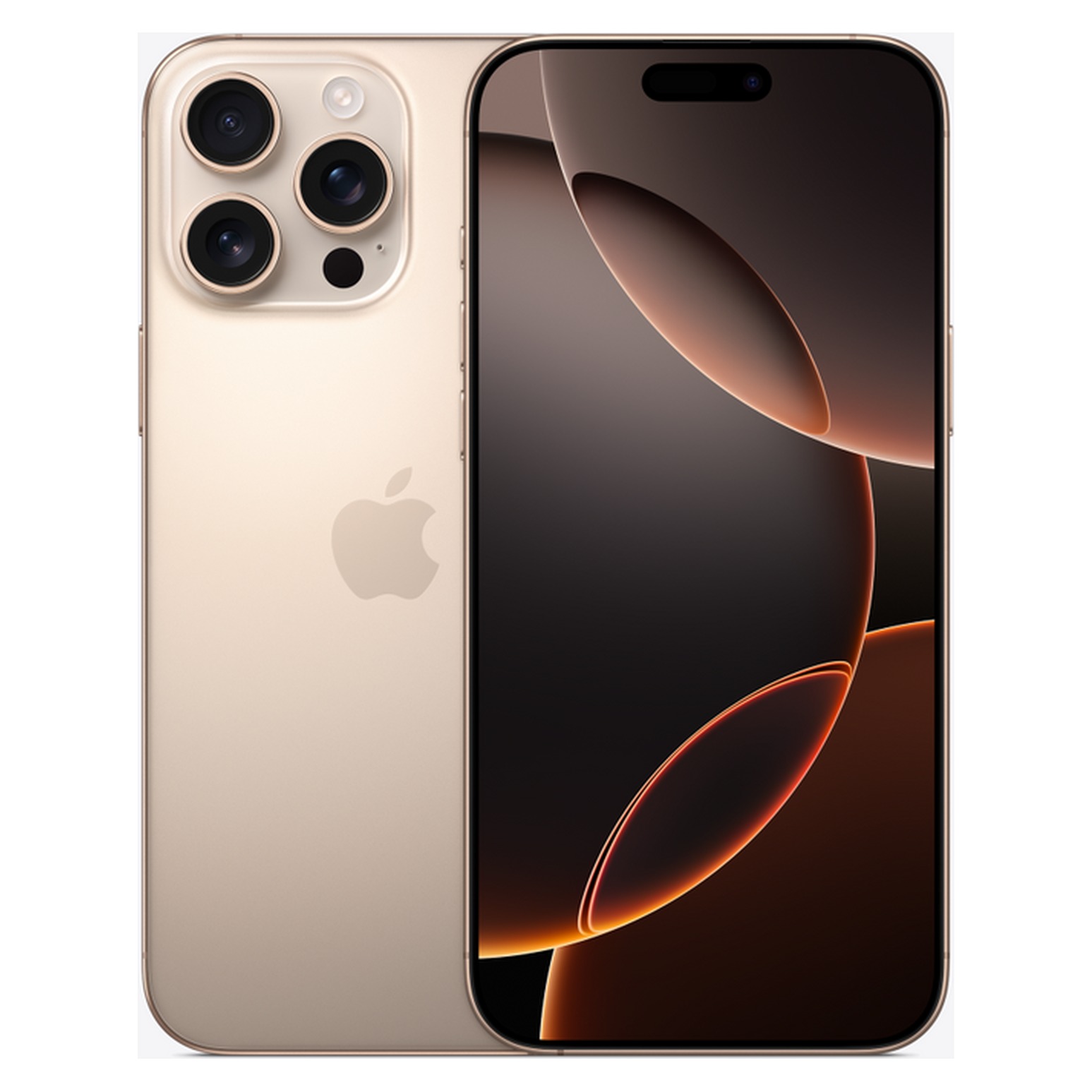

Black Titanium, White Titanium, Natural Titanium, Desert Titanium (all 4 global finishes)

Please note: some of this product information may have changed or be incorrect. Confirm the details with the dealer, or check the official Apple website at www.apple.com for the most accurate information.
