S22 Ultra 512GB

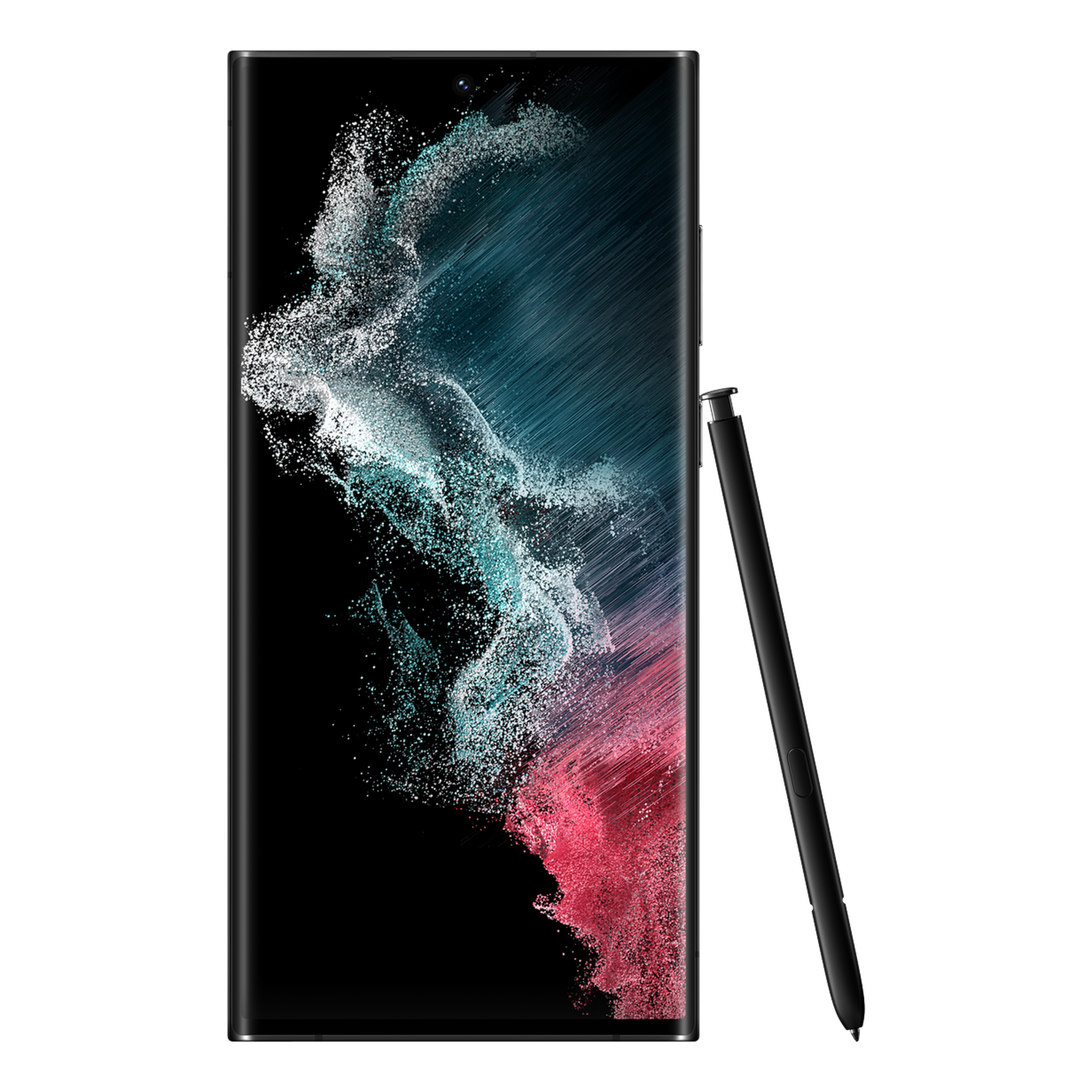

Samsung Galaxy S22 Ultra · 512GB

Qualcomm Snapdragon 8 Gen 1 (SM8450 Waipio, 4 nm), octa-core with prime core at 2.995 GHz, Adreno 730. NOT Exynos 2200: Korea took Snapdragon for the S22 generation.

Display

Type	Dynamic AMOLED 2X, LTPO, HDR10+, 1-120Hz adaptive refresh rate, 1750 nits peak brightness
Size	6.8 inches (173.1 mm diagonal), ~90.2% screen-to-body ratio
Resolution	1440 x 3088 pixels, 19.3:9 ratio (~500 ppi density)
Protection	Corning Gorilla Glass Victus+

Performance

OS	Android 12, One UI 4.1 upgraded through Android 16, One UI 8.0 (4 OS upgrades, 5 years of security updates)
Chipset	Qualcomm SM8450 Snapdragon 8 Gen 1 (4 nm) - Korea, USA, China and most of the world Exynos 2200 (4 nm) - Europe
CPU	Octa-core, prime core up to 2.995 GHz (Snapdragon 8 Gen 1)
GPU	Adreno 730 - Snapdragon Xclipse 920 - Exynos

Memory

Card slot	No
Storage	512GB with 12GB RAM

Main camera

Setup	Quad
Modules	108 MP, f/1.8, 24mm (wide), 1/1.33", 0.8µm, Samsung S5KHM3 sensor, PDAF and laser AF, OIS 10 MP, f/2.4, 69-70mm (telephoto), PDAF, OIS, 3x optical zoom 10 MP, f/4.9, 230-240mm (periscope telephoto), 1.12µm, PDAF, OIS, 10x optical zoom 12 MP, f/2.2, 13mm (ultrawide), 120˚, 1/2.55", 1.4µm, Sony IMX563 sensor, PDAF
Features	Single LED flash auto-HDR HDR video panorama laser autofocus 100x Space Zoom (hybrid)
Video	8K@24fps (7680x4320), plus 4K and 1080p modes HDR10+, stereo sound rec., gyro-EIS and OIS

Front camera

Setup	Single
Modules	40 MP, f/2.2, 26mm (wide), 1/2.82", 0.7µm, Samsung S5KGH1 sensor, PDAF
Features	HDR photo and video pixel binning slow motion
Video	4K@30/60fps (3840x2160)

Battery

Type	Li-Ion 5000 mAh, non-removable
Charging	45W wired, USB Power Delivery 3.0 15W wireless (Qi/PMA) 4.5W reverse wireless (Wireless PowerShare)

Body

Dimensions	163.3 x 77.9 x 8.9 mm (6.43 x 3.07 x 0.35 in)
Weight	228 g (8.04 oz)
Build	Glass front (Gorilla Glass Victus+), glass back (Gorilla Glass Victus+), aluminum frame built-in S Pen silo
SIM	Nano-SIM (4FF). Korean SM-S908N is single physical SIM.
Durability	IP68 dust tight and water resistant (immersible up to 1.5m for 30 min)

Connectivity

Wi-Fi	Wi-Fi 802.11 a/b/g/n/ac/6 (ax), Wi-Fi 6E tri-band, Wi-Fi Direct, Miracast, DLNA, Wi-Fi Calling
Bluetooth	5.2, A2DP, LE, aptX, aptX HD
Positioning	GPS (dual-band, A-GPS), GLONASS, BDS, GALILEO, QZSS
NFC	Yes (NFC A, NFC B)
Radio	No FM radio
USB	USB Type-C 3.2 Gen 1, OTG, DisplayPort out (up to 4K), USB Power Delivery 3.0

Sound

Loudspeaker	Yes, stereo speakers, Dolby Atmos, tuned by AKG, 32-bit/384kHz audio
Jack 3 5Mm	No

Features

Sensors	Fingerprint (under display, ultrasonic) accelerometer gyro proximity compass barometer hall sensor RGB light sensor step counter
Other	Built-in S Pen with 2.8ms latency (first S series with an integrated S Pen) Ultra Wideband (UWB) Samsung DeX, Samsung Wireless DeX Bixby

Network

Technology	GSM / HSPA / LTE / 5G
Bands 2G	GSM 850 (B5) / 900 (B8) / 1800 (B3) / 1900 (B2)
Bands 3G	UMTS 850 (B5) / 900 (B8) / 1700-2100 AWS (B4) / 1900 (B2) / 2100 (B1)
Bands 4G	1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 38, 39, 40, 41, 66 (SM-S908N band list per PhoneDB)
Bands 5G	n77 (3.7 GHz), n78 (3.5 GHz) Sub6 and n257 (28 GHz mmWave) on SM-S908N
Speed	HSPA 42.2/5.76 Mbps, LTE Cat20 2000/300 Mbps, 5G NR up to 3.7 Gbps Sub6

Korean colours

Base colours Phantom Black (팬텀 블랙), Phantom White (팬텀 화이트), Green (그린), Burgundy (버건디), plus the Samsung.com exclusive Graphite (그라파이트), Sky Blue (스카이 블루) and Red (레드), which unlike on the S22 and S22+ were sold in Korea: seven colours in total.

Please note: some of this product information may have changed or be incorrect. Confirm the details with the dealer, or check the official Samsung website at www.samsung.com for the most accurate information.
